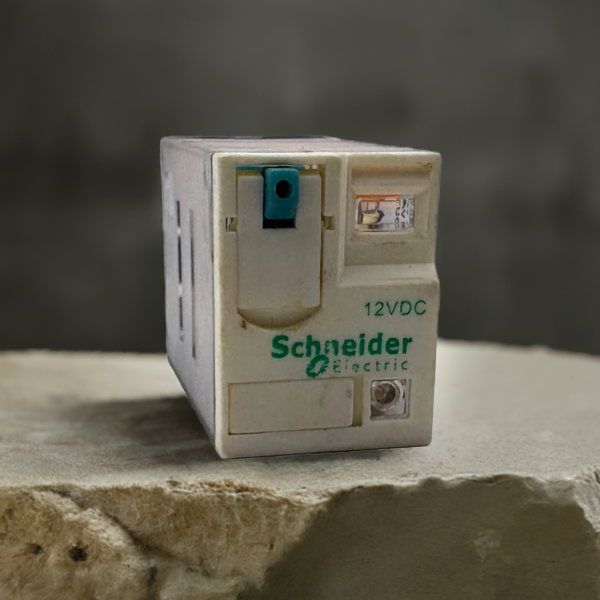

12V DC 14-Pin Relay

This 14-pin relay with a 12V DC coil is designed for control and switching applications in automation systems. Its compact, plug-in design allows for quick installation into standard relay bases. Commonly used in industrial panels, machinery, and electronic circuits, this relay features transparent housing for easy inspection and reliable operation under varying loads.

Key Features:

• Coil Voltage: 12V DC

• Pin Type: 14-pin (DPDT)

• Contact Form: 2 Form C (Double Pole Double Throw)

• Contact Rating: Typically up to 10A at 250V AC or 30V DC

• Indicator: Built-in LED for coil status (if included in model)

• Enclosure: Transparent for visual status check

• Mounting: Plug-in (socket type)

Specifications:

• Mechanical Life: Over 10 million operations

• Electrical Life: Rated for standard AC/DC switching

• Operating Temperature: -20°C to +55°C

• Compatible Base: Standard 14-pin socket

• Dimensions: Compact, fits standard relay slots

Applications:
Ideal for control panels, timers, alarms, PLC systems, and other automation or switching needs.

Note:
Ensure compatibility with your relay socket and contact rating requirements before use.
